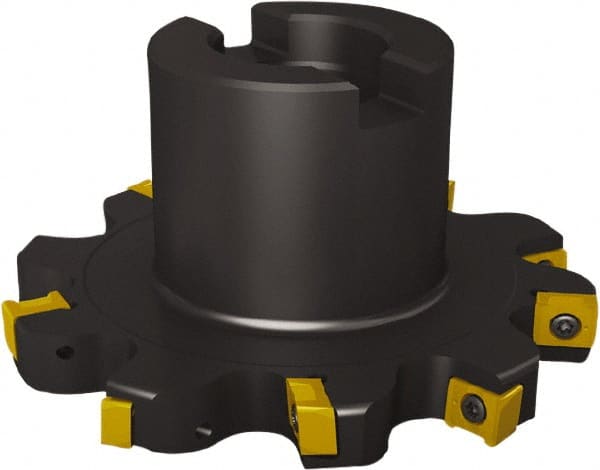

Seco - Shell Mount Connection, 5/8" Cutting Width, 1.06" Depth of Cut, 4" Cutter Diam, 1" Hole Diam, 3 Tooth Indexable Slotting Cutter - R335.18 Toolholder, LNK.. 06.. Insert, Right Hand Cutting Direction
Item #: 60153137
Brand: Seco
Model #: 21519
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (Decimal Inch) | 0.6250 |
| Maximum Depth of Cut (Decimal Inch) | 1.0600 |
| Cutter Diameter (Decimal Inch) | 4.0000 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Number of Teeth | 3 |
| Toolholder Style | R335.18 |
| Series | R335.18 |
| Insert Style | LNK.. 06.. |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 9 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 9400 |
| Minimum Cutting Width (Decimal Inch) | 0.6250 |
| Maximum Cutting Width (Decimal Inch) | 0.6250 |
| Hub Diameter (Decimal Inch) | 1.8800 |
| Radius | No |
| Complete Insert Compatibility1 | LNKT 060504PPN-E05; LNKT 060504PPTN-M06; LNKT 060508PPN-E05; LNKT 060508PPTN-M06; LNKT 060516PPN-E05; LNKT 060516PPTN-M06; LNKT 060531PPN-E05; LNKT 060531PPTN-M06; LNKT 060540PPL-E05; LNKT 060540PPR-E05; LNKT 060540PPTL-M06; LNKT 060540PPTR-M06; LNKW 0605 |
