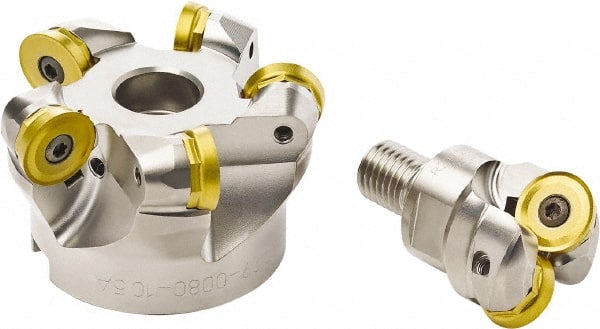

Seco - 200mm Cut Diam, 10mm Max Depth, 60mm Arbor Hole, 8 Inserts, RP.. 2006 Insert Style, Indexable Copy Face Mill - 3,200 Max RPM, 63mm High
Item #: 60153590
Brand: Seco
Model #: 22320
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 200.00 |
| Cutting Diameter (Decimal Inch) | 7.8740 |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Arbor Hole Diameter (mm) | 60.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.3622 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Number of Cutter Inserts | 8 |
| Insert Compatibility | RP.. 2006 |
| Through Coolant | No |
| Maximum RPM | 3200 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 5.1181 |
| Insert Inscribed Circle (mm) | 20.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.7874 |
| Keyway Width (Decimal Inch) | 1.0118 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | RPHT 2006M0-E10; RPHT 2006M0T-ME12; RPKT 2006M0T-M15; RPKT 2006M0T-M20; RPKW 2006M0-MD10; RPKW 2006M0T-MD22 |
