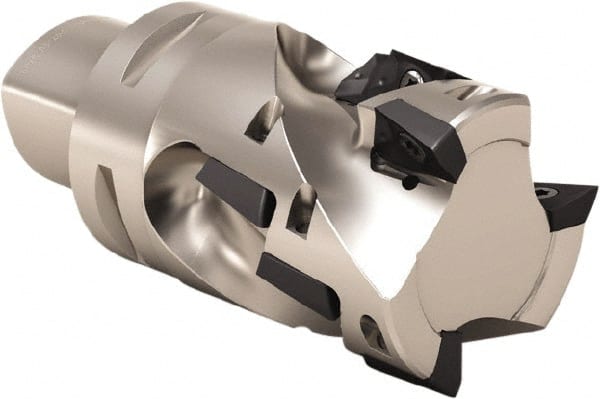

Seco - 54mm Cut Diam, 47mm Max Depth of Cut, 112mm OAL, Indexable Square Shoulder Helical End Mill - XO.. 1806 Inserts, C5 Modular Connection, 90° Lead Angle, Through Coolant, Series Power Turbo
Item #: 60154283
Brand: Seco
Model #: 59251
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 54.00 |
| Cutting Diameter (Decimal Inch) | 2.1260 |
| Shank Type | Modular Connection |
| Modular Connection Size | C5 |
| Overall Length/Projection (mm) | 112.00 |
| Overall Length/Projection (Decimal Inch) | 4.4094 |
| Lead Angle | 90 |
| Series | Power Turbo |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 47.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.8504 |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 3 |
| Head Length (mm) | 82.00 |
| Head Length (Decimal Inch) | 3.2283 |
| Weldon Flat | No |
| Insert Compatibility | XO.. 1806 |
| Maximum RPM | 8600 |
