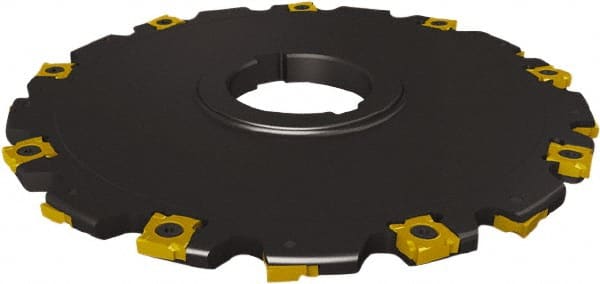

Seco - Arbor Hole Connection, 0.1969" Cutting Width, 1.717" Depth of Cut, 160mm Cutter Diam, 1.5748" Hole Diam, 9 Tooth Indexable Slotting Cutter - 335.19 Toolholder, SNHQ 1103 Insert
Item #: 60156270
Brand: Seco
Model #: 90138
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (mm) | 43.61 |
| Maximum Depth of Cut (Decimal Inch) | 1.7170 |
| Cutter Diameter (mm) | 160.00 |
| Cutter Diameter (Decimal Inch) | 6.2992 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Number of Teeth | 9 |
| Toolholder Style | 335.19 |
| Series | 335.19 |
| Insert Style | SNHQ 1103 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 18 |
| Insert Holding Method | Screw |
| Maximum RPM | 9300 |
| Minimum Cutting Width (Decimal Inch) | 0.1969 |
| Maximum Cutting Width (Decimal Inch) | 0.1969 |
| Maximum Cutting Width (mm) | 5.00 |
| Radius | No |
| Rake | Negative |
| Cutter Body Width (mm) | 12.00 |
| Cutter Body Width (Decimal Inch) | 0.4724 |
| Complete Insert Compatibility1 | SNHQ 110302EL4-E05; SNHQ 110302ER4-E05; SNHQ 110302TL4-M07; SNHQ 110302TR4-M07; SNHQ 110304TL4-M07; SNHQ 110304TR4-M07; SNHQ 110308TL4-M07; SNHQ 110308TR4-M07; SNHQ 110312TL4-M07; SNHQ 110312TR4-M07; SNHQ 110316TL4-M07; SNHQ 110316TR4-M07; SNHQ 110320TL4- |
