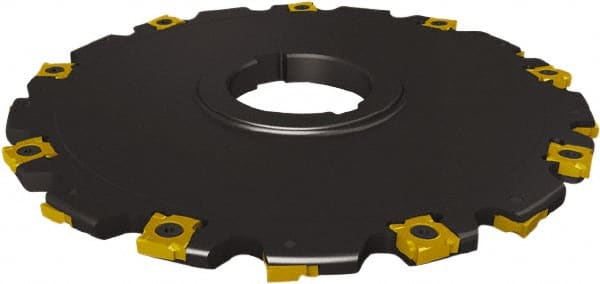

Seco - Arbor Hole Connection, 0.3937" Cutting Width, 2-1/2" Depth of Cut, 200mm Cutter Diam, 1.9685" Hole Diam, 9 Tooth Indexable Slotting Cutter - 335.19 Toolholder, SNHQ 1205 Insert
Item #: 60156767
Brand: Seco
Model #: 48324
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 10.00 |
| Cutting Width (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 63.50 |
| Maximum Depth of Cut (Decimal Inch) | 2.5000 |
| Cutter Diameter (mm) | 200.00 |
| Cutter Diameter (Decimal Inch) | 7.8740 |
| Hole Diameter (mm) | 50.00 |
| Hole Diameter (Decimal Inch) | 1.9685 |
| Number of Teeth | 9 |
| Toolholder Style | 335.19 |
| Series | 335.19 |
| Insert Style | SNHQ 1205 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 18 |
| Insert Holding Method | Screw |
| Maximum RPM | 4700 |
| Minimum Cutting Width (Decimal Inch) | 0.3937 |
| Maximum Cutting Width (Decimal Inch) | 0.3937 |
| Maximum Cutting Width (mm) | 10.00 |
| Radius | No |
| Rake | Negative |
| Cutter Body Width (mm) | 12.00 |
| Cutter Body Width (Decimal Inch) | 0.4724 |
| Complete Insert Compatibility1 | SNHQ 120502TL4-M07; SNHQ 120502TR4-M07; SNHQ 120504EL4-E05; SNHQ 120504ER4-E05; SNHQ 120504TL4-M07; SNHQ 120504TR4-M07; SNHQ 120508TL4-M07; SNHQ 120508TR4-M07; SNHQ 120510TL4-M07; SNHQ 120510TR4-M07; SNHQ 120512TL4-M07; SNHQ 120512TR4-M07; SNHQ 120516TL4- |
