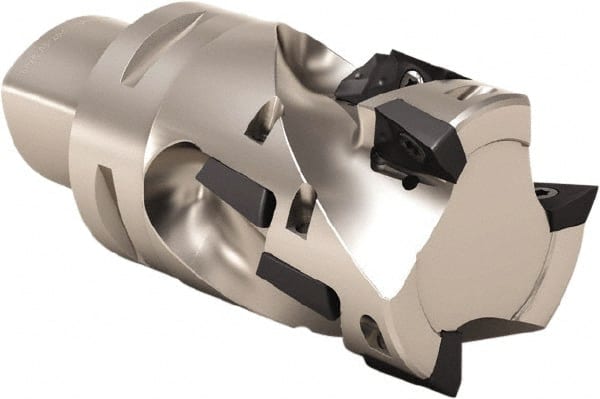

Seco - 50mm Cut Diam, 55mm Max Depth of Cut, 130mm OAL, Indexable Square Shoulder Helical End Mill - XO.. 1204 Inserts, C6 Modular Connection, 90° Lead Angle, Through Coolant, Series Super Turbo
Item #: 60156783
Brand: Seco
Model #: 59253
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Shank Type | Modular Connection |
| Modular Connection Size | C6 |
| Overall Length/Projection (mm) | 130.00 |
| Overall Length/Projection (Decimal Inch) | 5.1181 |
| Lead Angle | 90 |
| Series | Super Turbo |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 55.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.1654 |
| Number of Cutter Inserts | 20 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 4 |
| Head Length (mm) | 92.00 |
| Head Length (Decimal Inch) | 3.6220 |
| Weldon Flat | No |
| Insert Compatibility | XO.. 1204 |
| Maximum RPM | 14800 |
