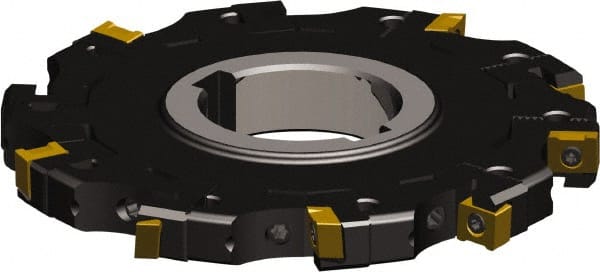

Seco - Arbor Hole Connection, 0.3937" Cutting Width, 1.976" Depth of Cut, 160mm Cutter Diam, 1.5748" Hole Diam, 6 Tooth Indexable Slotting Cutter - 335.18 Toolholder, LNK.. 06.. Insert
Item #: 60156932
Brand: Seco
Model #: 18427
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 10.00 |
| Cutting Width (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 50.19 |
| Maximum Depth of Cut (Decimal Inch) | 1.9760 |
| Cutter Diameter (mm) | 160.00 |
| Cutter Diameter (Decimal Inch) | 6.2992 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Number of Teeth | 6 |
| Toolholder Style | 335.18 |
| Series | 335.18 |
| Insert Style | LNK.. 06.. |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Maximum RPM | 7500 |
| Minimum Cutting Width (Decimal Inch) | 0.3937 |
| Maximum Cutting Width (Decimal Inch) | 0.4724 |
| Maximum Cutting Width (mm) | 12.00 |
| Radius | No |
| Cutter Body Width (mm) | 15.00 |
| Cutter Body Width (Decimal Inch) | 0.5906 |
| Complete Insert Compatibility1 | LNKT 060504PPN-E05; LNKT 060504PPTN-M06; LNKT 060504PPTN4-M06; LNKT 060508PPN-E05; LNKT 060508PPTN-M06; LNKT 060508PPTN4-M06; LNKT 060516PPN-E05; LNKT 060516PPTN-M06; LNKT 060531PPN-E05; LNKT 060531PPTN-M06; LNKT 060540PPL-E05; LNKT 060540PPR-E05 |
