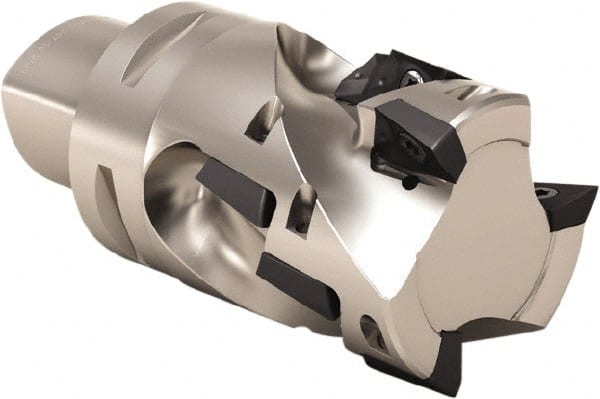

Seco - 50mm Cut Diam, 66mm Max Depth of Cut, 139mm OAL, Indexable Square Shoulder Helical End Mill - XO.. 1204 Inserts, C6 Modular Connection, 90° Lead Angle, Through Coolant, Series Super Turbo
Item #: 60157641
Brand: Seco
Model #: 59260
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Shank Type | Modular Connection |
| Modular Connection Size | C6 |
| Overall Length/Projection (mm) | 139.00 |
| Overall Length/Projection (Decimal Inch) | 5.4724 |
| Lead Angle | 90 |
| Series | Super Turbo |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 66.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.5984 |
| Number of Cutter Inserts | 24 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 4 |
| Head Length (mm) | 101.00 |
| Head Length (Decimal Inch) | 3.9764 |
| Weldon Flat | No |
| Insert Compatibility | XO.. 1204 |
| Maximum RPM | 14800 |
