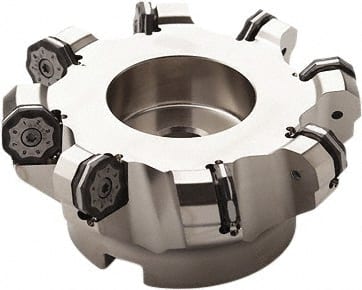

Seco - 215mm Cut Diam, 60mm Arbor Hole, 6mm Max Depth of Cut, 40° Indexable Chamfer & Angle Face Mill - 12 Inserts, ON.. 0905 Insert, Right Hand Cut, 12 Flutes, Series Double OctoMill
Item #: 60158821
Brand: Seco
Model #: 45159
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 215.00 |
| Cutting Diameter (Decimal Inch) | 8.4646 |
| Arbor Hole Diameter (mm) | 60.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.3622 |
| Lead Angle | 40 |
| Overall Height (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | ON.. 0905 |
| Series | Double OctoMill |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Number of Flutes | 12 |
| Cutting Rake Angle | -11 |
| Rake | Negative |
| Hub Diameter (Decimal Inch) | 5.1181 |
| Hub Diameter (mm) | 130.00 |
| Keyway Width (mm) | 25.70 |
| Keyway Width (Decimal Inch) | 1.0118 |
| Maximum Body Diameter (Decimal Inch) | 7.8740 |
| Maximum RPM | 2700 |
| Cutting Direction | Right Hand |
| Pitch | Normal |
| Complete Insert Compatibility | ONEF 090520ZZTN-M14; ONEU 090520ZZTN4-M14; ONMF 090520ANTN-M14; ONMF 090520ANTN-MD16; ONMU 090520ANTN-M12; ONMU 090520ANTN-M13; ONMU 090520ANTN-M14; ONMU 090520ANTN-M15; ONMU 090520ANTN-MD16; ONMU 090520ANTN-MD17; ONMU 090520ANTN-ME12; ONMU 090520ANTN-ME1 |
