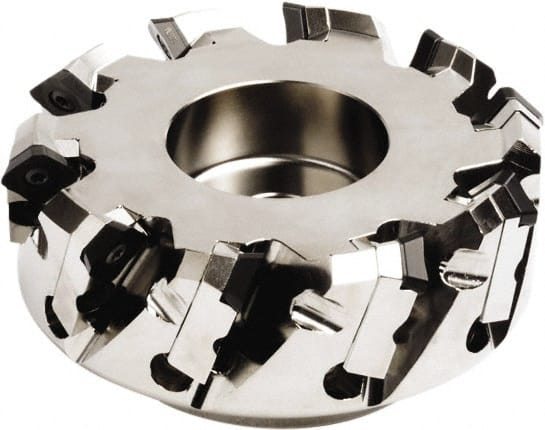

Seco - 212mm Cut Diam, 60mm Arbor Hole, 6mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 12 Inserts, SE.. 1204 Insert, Right Hand Cut, 12 Flutes, Series QuattroMill
Item #: 60158839
Brand: Seco
Model #: 18661
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 212.00 |
| Cutting Diameter (Decimal Inch) | 8.3465 |
| Arbor Hole Diameter (mm) | 60.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.3622 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | SE.. 1204 |
| Series | QuattroMill |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Number of Flutes | 12 |
| Cutting Rake Angle | 10 |
| Rake | Positive |
| Hub Diameter (Decimal Inch) | 5.1181 |
| Hub Diameter (mm) | 130.00 |
| Keyway Width (mm) | 25.70 |
| Keyway Width (Decimal Inch) | 1.0118 |
| Maximum Body Diameter (Decimal Inch) | 7.8740 |
| Maximum RPM | 4700 |
| Cutting Direction | Right Hand |
| Pitch | Normal |
| Complete Insert Compatibility | SEEX 1204AFN-E08; SEEX 1204AFN-M10; SEEX 1204AFTN-M14; SEEX 1204AFTN-MD18; SEEX 1204AFTN-ME11; SEEX 1204ZZTN-M14; SEMX 1204AFTN-M15; SEMX 1204AFTN-MD19; SEMX 1204AFTN-ME12 |
