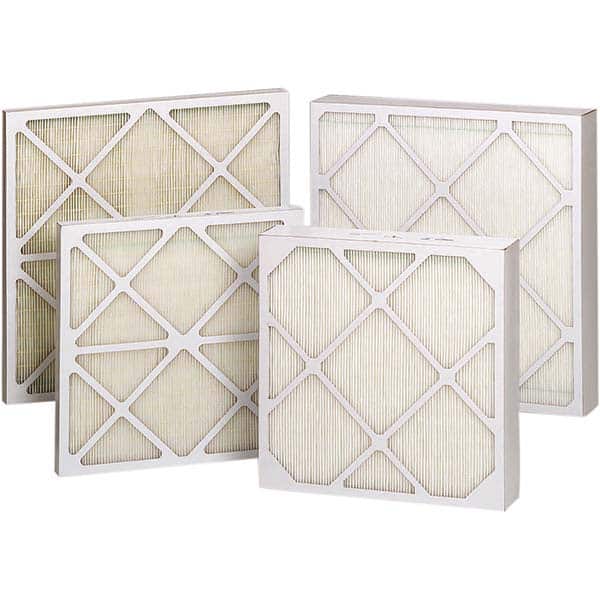

PRO-SOURCE - Pleated & Panel Air Filters Filter Type: Mini-Pleat Nominal Height (Inch): 16
Item #: 14276802
Brand: PRO-SOURCE
Model #:
Product Specifications
Pleated & Panel Air Filters; Filter Type: Mini-Pleat ; Nominal Height (Inch): 16 ; Nominal Width (Inch): 25 ; Nominal Depth (Inch): 4 ; MERV Rating: 14 ; Media Material: Synthetic
| Filter Type | Mini-Pleat |
| Nominal Height (Inch) | 16 |
| Nominal Width (Inch) | 25 |
| Nominal Depth (Inch) | 4 |
| MERV Rating | 14 |
| Media Material | Synthetic |
| Integrated Frame | Yes |
| Actual Height (Decimal Inch) | 15.380 |
| Actual Width (Decimal Inch) | 24.380 |
| Actual Depth (Inch) | 3.75 |
| Maximum Air Flow (FPM) | 625 |
| CFM | 1736 |
| Initial Resistance at FPM (Inches w.g.) | 0.24 (at 375 FPM); 0.35 (at 500 FPM); 0.47 (at 625 FPM) |
| Final Resistance at FPM (Inches w.g.) | 1.5 |
| Maximum Temperature (F) | 150.000 |
| Frame Material | Beverage Board |
