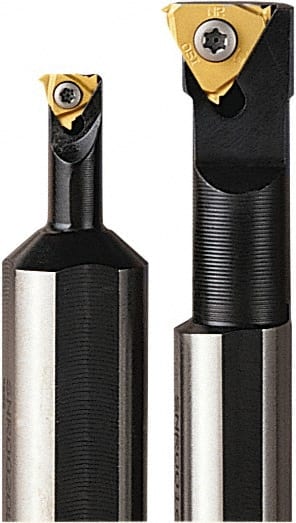

Seco - Internal Thread, Left Hand Cut, 10mm Shank Width x 0.394" Shank Height Indexable Threading Toolholder - 100mm OAL, 11NL Insert Compatibility, SN Toolholder, Series Snap Tap
Item #: 60182847
Brand: Seco
Model #: 25415
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (mm) | 10.00 |
| Shank Width/Diameter (Decimal Inch) | 0.3740 |
| Shank Height (Decimal Inch) | 0.3940 |
| Overall Length (Decimal Inch) | 3.9370 |
| Overall Length (mm) | 100.00 |
| Insert Compatibility | 11NL |
| Series | Snap Tap |
| Toolholder Style | SN |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Threading; Turning |
| Insert Holding Method | Screw |
| Center to Cutting Edge (mm) | 6.50 |
| Center to Cutting Edge (Decimal Inch) | 0.2559 |
| Insert Inscribed Circle (mm) | 6.35 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
