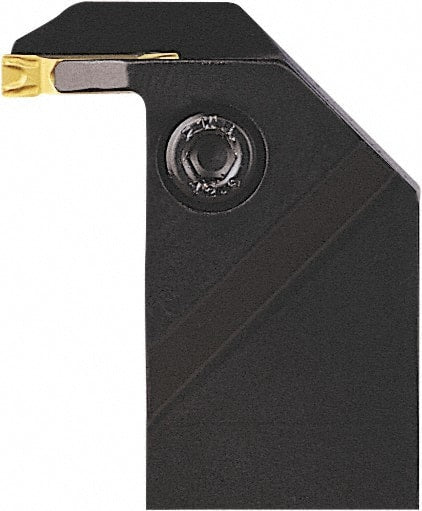

Seco - CGI, External, Left Hand, 12mm Max Depth of Cut, 4mm Min Groove Width, Indexable Grooving Tool Holder - LC.. 1604.. Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 150mm OAL
Item #: 60183043
Brand: Seco
Model #: 27660
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 12.00 |
| Minimum Groove Width (Decimal Inch) | 0.1575 |
| Minimum Groove Width (mm) | 4.00 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Toolholder Style | CGI |
| Insert Compatibility | LC.. 1604.. |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | Multi-Directional Turning (MDT) |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Insert Seat Size | 4 |
| Back of Bar to Cutting Edge (mm) | 38.40 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5118 |
| Maximum Groove Outside Diameter (mm) | 130.00 |
| Minimum Axial Groove Inside Diameter(mm) | 90.00 |
| Head Length (mm) | 32.00 |
| Head Length (Decimal Inch) | 1.2598 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | LCGF 160402-0400-GG; LCGF 160402-0400-GS; LCGF 1604M0-0400-RP; LCGN 160402-0400-FG; LCGN 160402-0420-FG; LCGN 160402-0440-FG; LCGN 160404-0400E-LF; LCGN 160404-0400E25-LF; LCGN 160404-0400S-LF; LCGN 160405-0240-DY; LCGN 160405-0265-DY; LCGN 160410-0300-DY |
