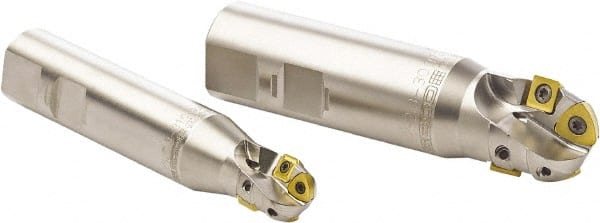

Seco - 19.99mm Cut Diam, 21.01mm Max Depth of Cut, 24.99mm Shank Diam, 4.921" OAL, Indexable Ball Nose End Mill - Straight Shank, R218.19 Toolholder, 218.19 100, SPMX 0703 Insert
Item #: 60184595
Brand: Seco
Model #: 69118
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 19.99 |
| Cutting Diameter (Decimal Inch) | 0.7870 |
| Maximum Depth of Cut (mm) | 21.01 |
| Maximum Depth of Cut (Decimal Inch) | 0.8270 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 24.99 |
| Shank Diameter (Decimal Inch) | 0.9840 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | 218.19 100; SPMX 0703 |
| Toolholder Style | R218.19 |
| Overall Length (Decimal Inch) | 4.9210 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | Yes |
| Tapered Neck | No |
| Number of Flutes | 1 |
| Number of Side Inserts Used on Toolholder | 2 |
| Maximum RPM | 26200 |
