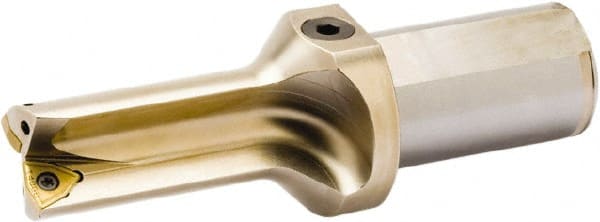

Seco - 44mm Max Drill Depth, 2xD, 22mm Diam, Indexable Insert Drill - 2 Inserts, 25mm Shank Diam, Straight Shank
Item #: 60185048
Brand: Seco
Model #: 35706
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD572 |
| Drill Diameter (mm) | 22.00 |
| Drill Diameter (Decimal Inch) | 0.8661 |
| Maximum Drill Depth (mm) | 44.00 |
| Maximum Drill Depth (Decimal Inch) | 1.7323 |
| Shank Type | Straight |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 27.00 |
| Overall Length/Projection (mm) | 135.00 |
| Overall Length/Projection (Decimal Inch) | 5.3150 |
| Insert Compatibility (Outside or Peripheral) | WCMX 040208.. |
| Insert Compatibility | WCMX 050308-86 |
| Flute Length (mm) | 49.00 |
| Flute Length (Decimal Inch) | 1.9291 |
| Body Length (Decimal Inch) | 3.1102 |
| Body Length (mm) | 79.00 |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
| Collar Diameter (mm) | 45.00 |
| Collar Diameter (Decimal Inch) | 1.7717 |
| Series | PerfoMAX |
