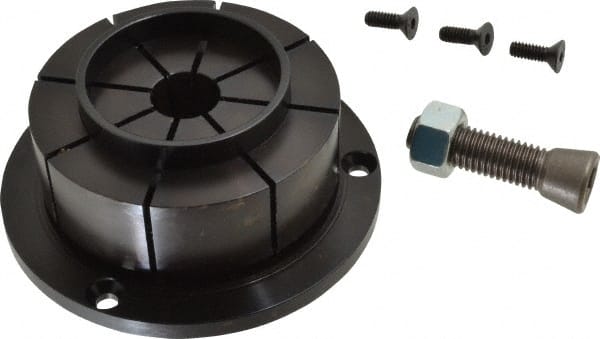

Mitee-Bite - 1.15 to 4.06" Expansion Diam, 10,000 Lb Holding Force, 1/4-20 Mounting Screw, 5/8-11 Center Screw, Mild Steel ID Expansion Clamps
Item #: 60263621
Brand: Mitee-Bite
Model #: 31450
Product Specifications
| Flange Diameter (Decimal Inch) | 5.2320 |
| Maximum Expansion Diameter (Decimal Inch) | 4.0600 |
| Minimum Expansion Diameter (Decimal Inch) | 1.1500 |
| Holding Force (Lb.) | 10000.00 |
| Center Screw Thread Size | 5/8-11 |
| Mounting Screw Thread Size | 1/4-20 |
| Material | Mild Steel |
| Mount Hole Diameter (Decimal Inch) | 4.6480 |
| Flange Thickness (Decimal Inch) | 0.3100 |
| Expansion Height (Decimal Inch) | 1.2700 |
| Height Above Flange (Decimal Inch) | 1.4800 |
| Overall Height (Decimal Inch) | 1.7900 |
| Number of Mount Holes | 3 |
| Thread Length Below Base (Decimal Inch) | 0.7900 |
| Torque (Ft/Lb) | 224.00 |
