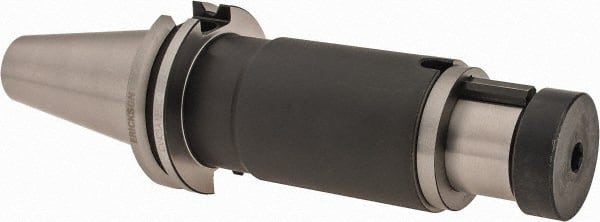

Kennametal - Slotting Cutter Adapter - Taper Shank, 7.781" OAL, CV40 Taper, For 1-1/4" Cutter Hole Diam
Item #: 60279809
Brand: Kennametal
Model #: 1026216
Exact Tooling IR#: 04
Features and Benefits
Slotting cutter adapters are straight shank adapters designed with a nut and keyway, They hold saws and milling cutters in conventional end mill adapters with a 1" bore.
| Product Specifications | |
|---|---|
| Type | Slotting Cutter Adapter |
| Milling Arbor Style | Slotting Cutter Adapter |
| Shank Type | Taper Shank |
| Arbor Diameter (mm) | 31.75 |
| Arbor Diameter (Inch) | 1 |
| Arbor Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (mm) | 44.45 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.7500 |
| Taper Size | CV40 |
| For Cutter Hole Diameter (mm) | 31.75 |
| For Cutter Hole Diameter (Inch) | 1-1/4 |
| For Cutter Hole Diameter (Decimal Inch) | 1.2500 |
| Overall Length (mm) | 197.64 |
| Overall Length (Decimal Inch) | 7.7810 |
| Projection (mm) | 101.60 |
| Projection (Decimal Inch) | 4 |
| Drawbar Thread Size | 5/8-11 |
| Includes | Drive Key; Lock Screw |
