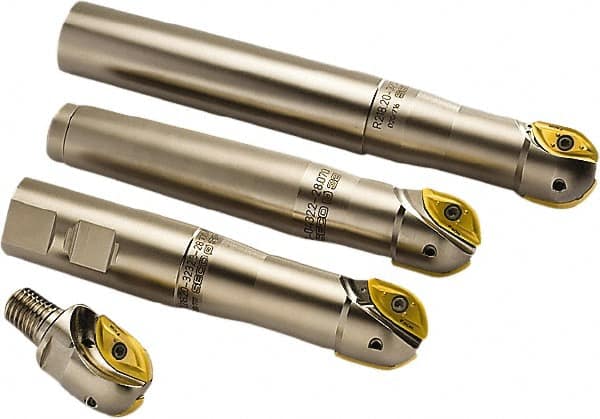

Seco - 1-1/2" Cut Diam, 1.33" Max Depth of Cut, Indexable Ball Nose End Mill - 1.97" Head Length, M16 Modular Connection, R218.20 Toolholder, 218.20 0.750.R Insert
Item #: 60298353
Brand: Seco
Model #: 07862
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1-1/2 |
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Depth of Cut (Decimal Inch) | 1.3300 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M16 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | 218.20 0.750.R |
| Toolholder Style | R218.20 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Tapered Neck | No |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.9700 |
| Maximum RPM | 7200 |
