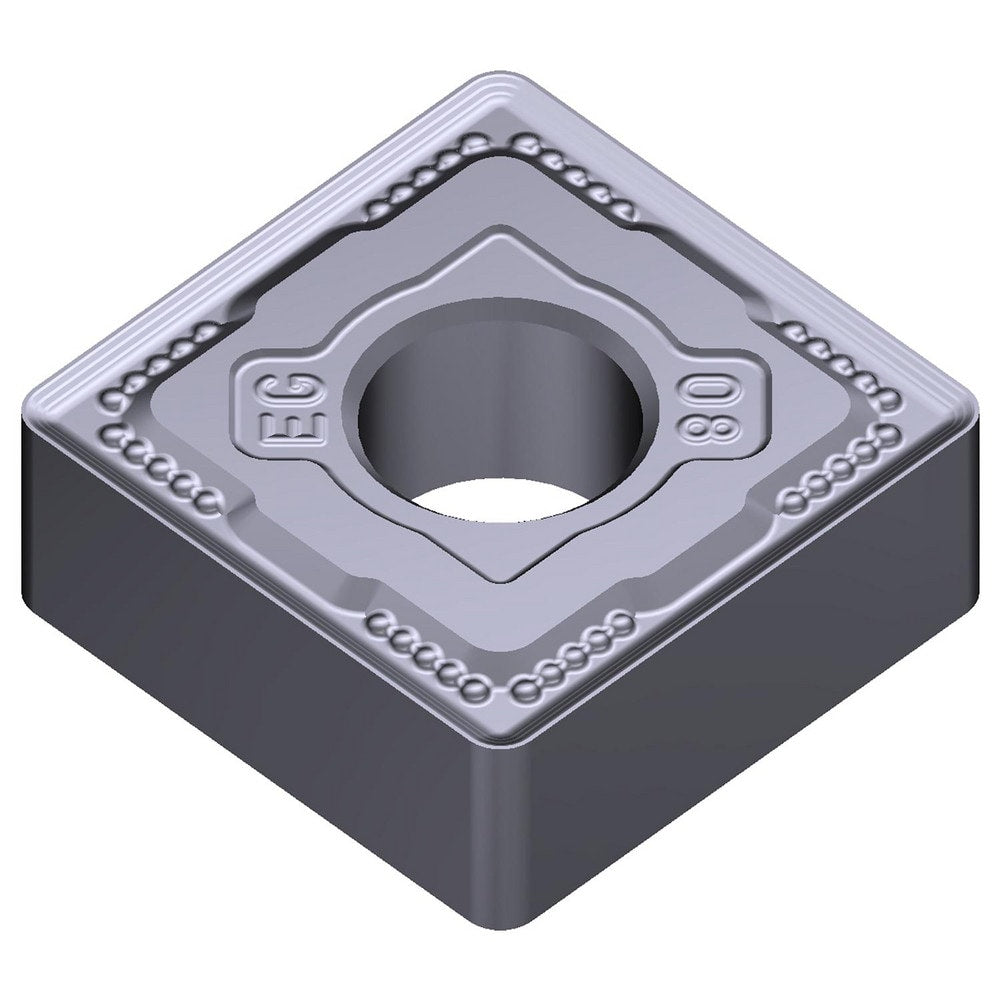

Turning Insert: SNMG432EEG AC5005S, Carbide
Item #: 14599286
Brand: Sumitomo
Model #: 19W2CGF
Product Specifications
| ANSI Insert Code | SNMG432 |
| ISO Insert Code | SNMG120408 |
| Relief Angle | 0 |
| Insert Style | SNMG |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 90 |
| Manufacturer Grade | AC5005S |
| Coating/Finish | Absotech |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | AC5005S |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Material | Carbide |
| Insert Shape | S - Square |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Special, Super Alloys (S) - High Wear-Resistance |
| Side Clearance | Negative |
| Insert Shape Code | S |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.16 |
| Insert Holding Method | Pin; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Rake | Negative |
| Insert Length (Inch) | 1/2 |
| Primary Workpiece Material Code | S |
| Iso Code | SNMG120408N-EG |
| Manufacturers Catalog Number | SNMG432EEG-AC5005S |
| Chip Breaker | EEG |
| ANSI Size Code | 432 |
| ISO Size Code | 120408 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
