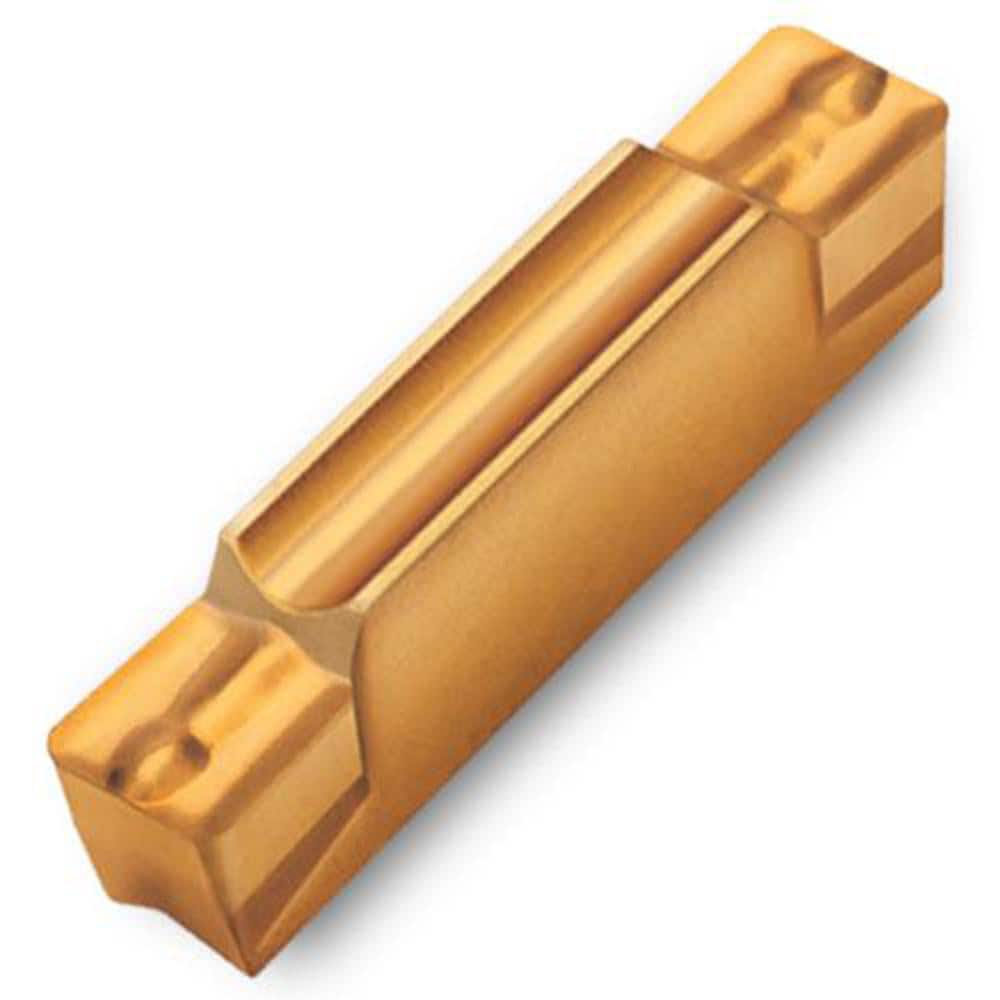

Grooving Insert: TDITT K10, Solid Carbide Uncoated, Neutral, 0.315″ Cutting Width, Series TDIT-.00E
Item #: 60349974
Brand: Ingersoll Cutting Tools
Model #: 6400268
Product Specifications
| Insert Style | TDIT |
| Insert Size Code | 8 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | K10 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0310 |
| Lead Angle | 90 |
| Rake | Positive |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Profiling |
| Series | TDIT-.00E |
| Rake Angle | 14.00 |
| Overall Length (Decimal Inch) | 1.1800 |
| Overall Length (mm) | 1.18 |
| Primary Workpiece Material | Cast Iron |
| Chip Breaker | T |
| Coating/Finish | Uncoated |
