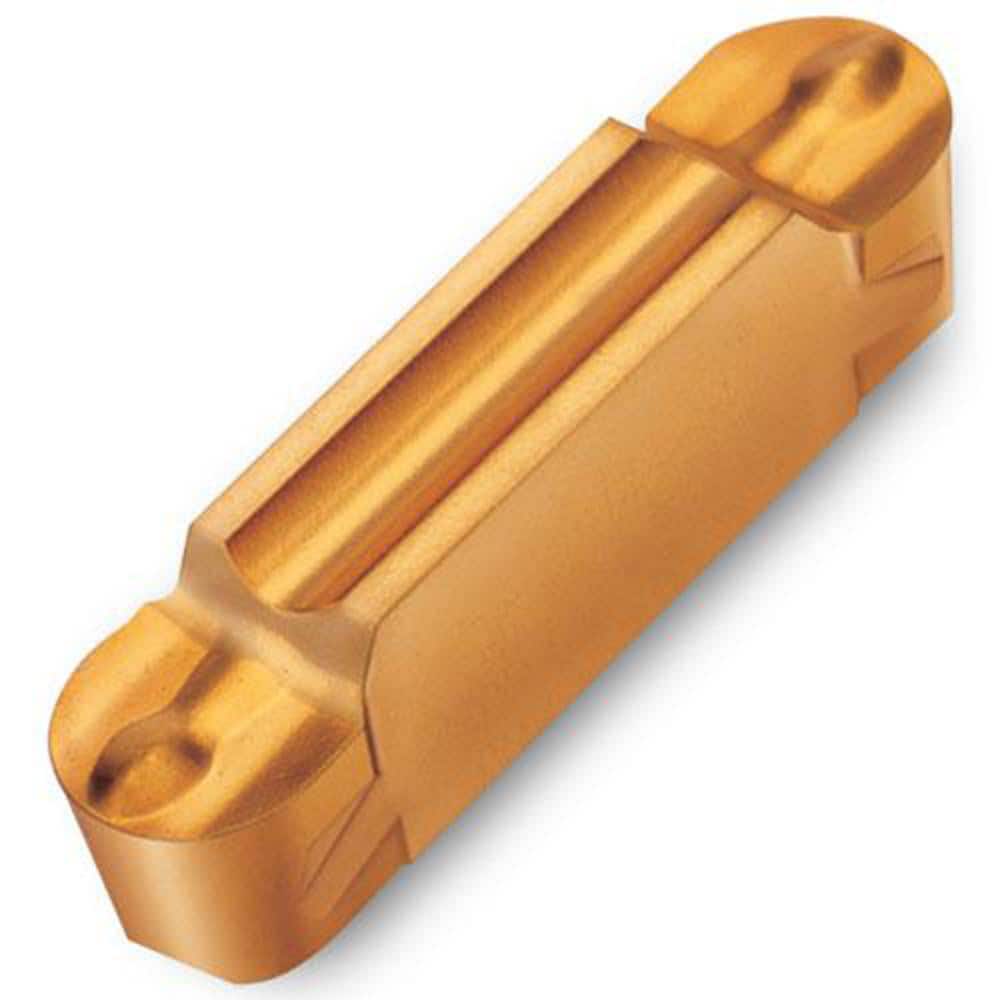

Grooving Insert: TDITT TT7220, Solid Carbide TiCN Finish, Neutral, 0.157″ Cutting Width, Series TDIT-E (Full Radius)
Item #: 60350295
Brand: Ingersoll Cutting Tools
Model #: 6400367
Product Specifications
| Insert Style | TDIT |
| Insert Size Code | 4 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT7220 |
| Cutting Width (Decimal Inch) | 0.1570 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0790 |
| Lead Angle | 90 |
| Rake | Positive |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Profiling |
| Series | TDIT-E (Full Radius) |
| Coating Process | PVD |
| Rake Angle | 7.00 |
| Overall Length (Decimal Inch) | 0.7900 |
| Overall Length (mm) | 0.79 |
| Primary Workpiece Material | Hard Material; Steel |
| Chip Breaker | T |
| Coating/Finish | TiCN |
