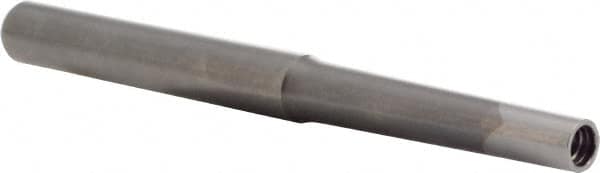

Iscar - Multimaster 1/2" 89° Shank Milling Tip Insert Holder & Shank - 0.364" Neck Diam, T06 Neck Thread, 5-1/2" OAL, Carbide MM S-D Tool Holder
Item #: 60555620
Brand: Iscar
Model #: 3103096
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Shank Type | 89 Degree Shank |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Neck Diameter (Decimal Inch) | 0.3640 |
| Neck Thread Size | T06 |
| Toolholder Material | Carbide |
| Overall Length (Decimal Inch) | 5.5000 |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 2.5000 |
| Effective Length (Decimal Inch) | 2.4700 |
| Milling Tip Style | T290 ELN-MM-05 |
| Shank Shape | Conical |
| Toolholder Style | MM S-D |
