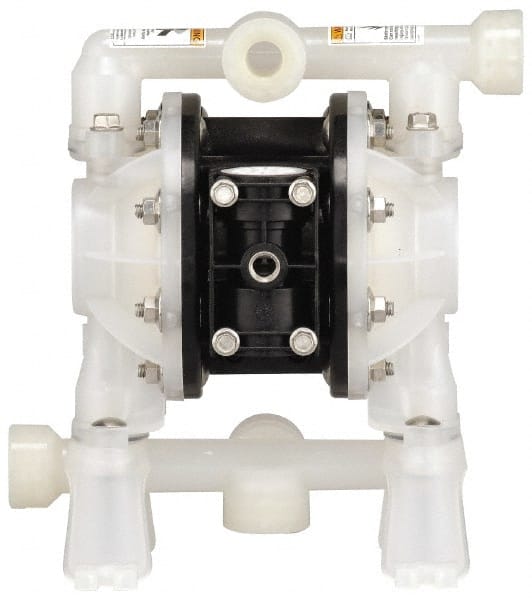

ARO/Ingersoll-Rand - 1/2" NPT, Nonmetallic, Air Operated Diaphragm Pump - PTFE Diaphragm, Acetal Housing
Item #: 60600129
Brand: ARO/Ingersoll-Rand
Model #: PD05P-AES-DTT-B
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Pump Type | Non-Metallic |
| Maximum Flow Rate (GPM) | 14.50 |
| Maximum Working Pressure (psi) | 100.00 |
| Air Inlet Size (Inch) | 1/4 |
| Maximum Solid Size (Inch) | 3/32 |
| Housing Type | Acetal |
| Inlet/Outlet NPT | 1/2 |
| Maximum Cubic Feet Per Minute | 19 |
| Diaphragm Material | PTFE |
| Ball Material | PTFE |
| Check Seat | Acetal |
| Height (Inch) | 10-7/8 |
| Width (Inch) | 6-23/32 |
| Length (Inch) | 8-27/32 |
