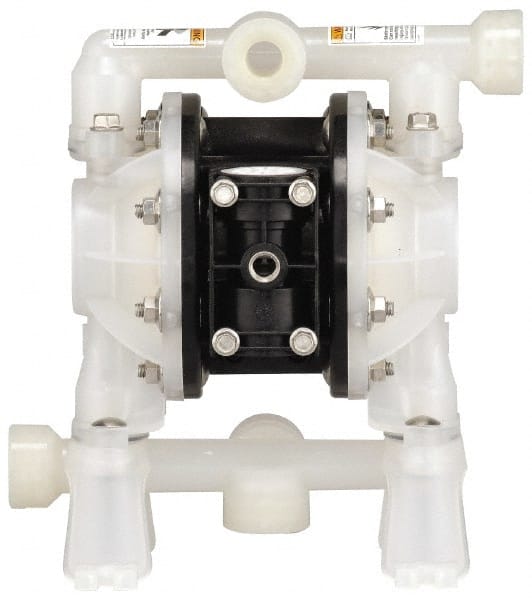

ARO/Ingersoll-Rand - 3/4" NPT, Nonmetallic, Air Operated Diaphragm Pump - PTFE Diaphragm, Polypropylene Housing
Item #: 60600194
Brand: ARO/Ingersoll-Rand
Model #: PD07P-APS-PTT
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Pump Type | Non-Metallic |
| Maximum Flow Rate (GPM) | 15.00 |
| Maximum Working Pressure (psi) | 100.00 |
| Air Inlet Size (Inch) | 1/4 |
| Maximum Solid Size (Inch) | 3/32 |
| Housing Type | Polypropylene |
| Inlet/Outlet NPT | 3/4 |
| Maximum Cubic Feet Per Minute | 19 |
| Diaphragm Material | PTFE |
| Ball Material | PTFE |
| Check Seat | Polypropylene |
| Height (Inch) | 10-29/32 |
| Width (Inch) | 5-17/32 |
| Length (Inch) | 10 |
