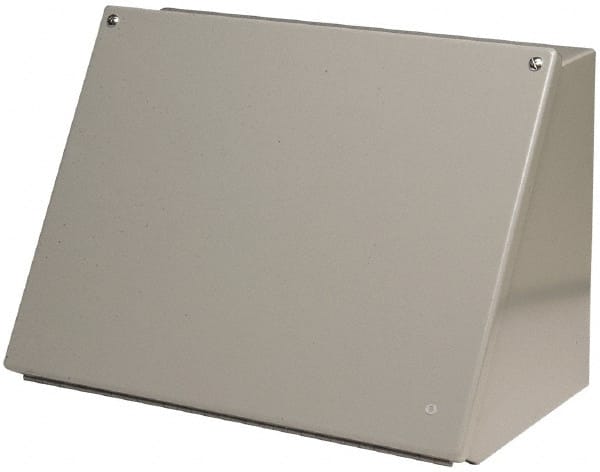

Cooper B-Line - Steel Standard Enclosure Hinge Sloped Cover - NEMA 12, 13, 24" Wide x 12" High x 9-5/32" Deep, Dirt-tight & Dust-tight
Item #: 60614591
Brand: Cooper B-Line
Model #: AC12C24
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Enclosure Type | Standard Enclosure |
| Cover Type | Hinge Sloped Cover |
| Enclosure Material | Steel |
| NEMA Rating | 12; 13 |
| Overall Width (Inch) | 24 |
| Overall Width (Decimal Inch) | 24 |
| Overall Height (Inch) | 12 |
| Overall Height (Decimal Inch) | 12 |
| Overall Depth (Inch) | 9-5/32 |
| Overall Depth (Decimal Inch) | 9.1200 |
| Cover Color | Gray |
| Finish/Coating | Polyester Powder Coat Finish |
| Material Gauge | 14 |
| Resistance Features | Dirt-tight; Dust-tight |
| Includes | Captive Screws; Continuous Hinge; Oil-resistant Gasket; Well Nuts |
| Standards Met | ANSI 61; CSA C22.2 No. 94 Certified; JIC EGP-1-1967; UL Listed 508 |
| Overall Width (mm) | 305 |
| Overall Height (mm) | 305 |
| Overall Depth (mm) | 232 |
