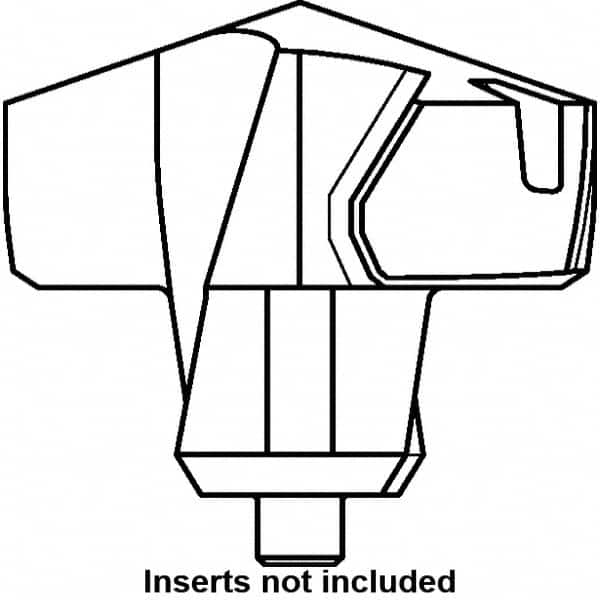

Kennametal - 17 to 17.99mm Diam, 4xD, 52.93mm Max Depth, 18mm Shank Diam, 81.33mm Flute, 145mm OAL, Replaceable Tip Drill - KTIP1700HPM Insert, V Seat Size, KTIP Toolholder, Series KenTIP
Item #: 60738838
Brand: Kennametal
Model #: 3324496
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 17.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.6693 |
| Maximum Drill Diameter (mm) | 17.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.7083 |
| Drill Depth by Diameter Ratio | 4xD |
| Maximum Drill Depth (Decimal Inch) | 2.0839 |
| Maximum Drill Depth (mm) | 52.93 |
| Shank Diameter (mm) | 18.00 |
| Shank Diameter (Decimal Inch) | 0.7087 |
| Insert Style | KTIP1700HPM |
| Insert Seat Size | V |
| Toolholder Style | KTIP |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Tip Length (mm) | 2.93 |
| Tip Length (Decimal Inch) | 0.1154 |
| Flute Length (mm) | 81.33 |
| Flute Length (Decimal Inch) | 3.2020 |
| Overall Length (mm) | 145.00 |
| Overall Length (Decimal Inch) | 5.7087 |
| Shank Length (mm) | 60.70 |
| Shank Length (Decimal Inch) | 2.3898 |
