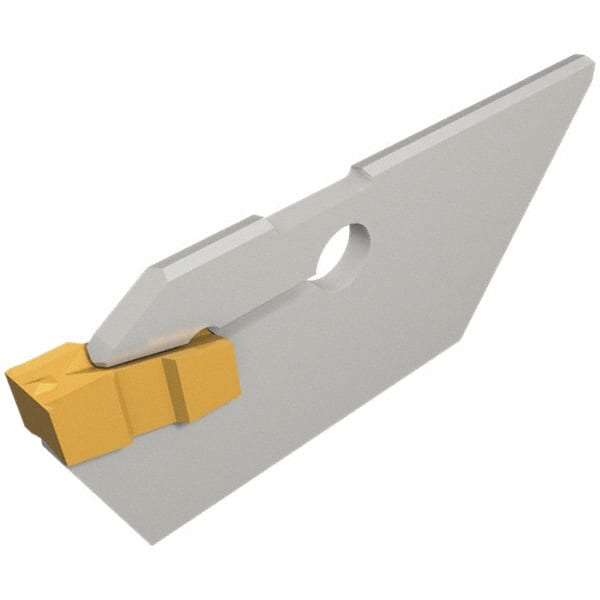

Iscar - 3.6 to 4.5mm Groove Width, 20mm Max Depth of Cut, Neutral Cut, CGHN Indexable Grooving Blade - Multiple Insert Styles, Series Cut Grip
Item #: 60782083
Brand: Iscar
Model #: 2800591
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Neutral |
| Minimum Groove Width (mm) | 3.60 |
| Minimum Groove Width (Decimal Inch) | 0.1417 |
| Maximum Depth of Cut (mm) | 20.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Blade Style | CGHN |
| Series | Cut Grip |
| Blade Height (mm) | 26.00 |
| Blade Height (Decimal Inch) | 1.0236 |
| Blade Width (mm) | 3.20 |
| Blade Width (Decimal Inch) | 0.1260 |
| Maximum Groove Width (mm) | 4.50 |
| Maximum Groove Width (Decimal Inch) | 0.1772 |
| Overall Length (mm) | 63.00 |
| Overall Length (Decimal Inch) | 2.4803 |
| Insert Style | GIA-K (W=3-6); GIF; GIF-E (W=4-6 Full Radius); GIF-E (W=4-6); GIM-C; GIM-J; GIM-J-RA/LA; GIM-W; GIM-W-RA/LA; GIMF; GIMN; GIMY (Full Radius); GIMY-F; GIP; GIP (Full Radius); GIP-E; GIP-E (Full Radius); GIPA (Full Radius W=3-6); GIPA (W=3-6); GIPY; GITM; GI |
| Complete Insert Compatibility | GIPA 4.00-2.00; GIPA 4.00-0.40; GIPA 4.00-2.00-D; GIPA 4.00-2.00YZ-D; GIPY 4.00-2.00; TIP 4A-MT-0.15; TIP 4MT-0.20; TIP 4MT-0.15; TIP 4WT-0.15 |
