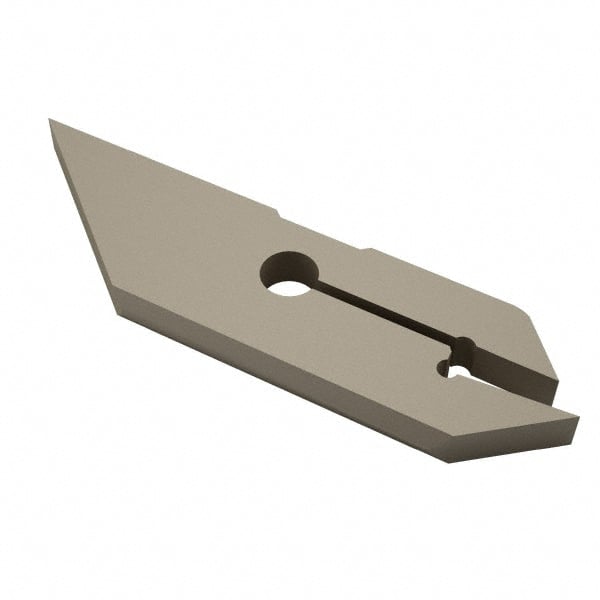

Iscar - 4.4 to 6.4mm Groove Width, 20mm Max Depth of Cut, Neutral Cut, CGHN Indexable Grooving Blade - Multiple Insert Styles, Series Cut Grip
Item #: 60782125
Brand: Iscar
Model #: 2800592
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Neutral |
| Minimum Groove Width (mm) | 4.40 |
| Minimum Groove Width (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (mm) | 20.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Blade Style | CGHN |
| Series | Cut Grip |
| Blade Height (mm) | 26.00 |
| Blade Height (Decimal Inch) | 1.0236 |
| Blade Width (mm) | 4.00 |
| Blade Width (Decimal Inch) | 0.1575 |
| Maximum Groove Width (mm) | 6.40 |
| Maximum Groove Width (Decimal Inch) | 0.2520 |
| Overall Length (mm) | 63.00 |
| Overall Length (Decimal Inch) | 2.4803 |
| Insert Style | GIA-K (W=3-6); GIF; GIF (Full Radius); GIF-E (W=4-6 Full Radius); GIF-E (W=4-6); GIM-C; GIM-UT; GIMF; GIMN; GIMY (Full Radius); GIMY-F; GIP; GIP (Full Radius); GIP-E; GIP-E (Full Radius); GIPA (Full Radius W=3-6); GIPA (W=3-6); GIPY; GITM; GITM (Full Radi |
| Complete Insert Compatibility | GIM 4.6UT; GIPA 5.00-2.50; GIPA 5.00-0.40; GIPA 5.00-2.50-D; GIPA 5.00-2.50YZ-D; GIPA 6.00-3.00; GIPA 6.00-0.40; GIPA 6.00-3.00-D; TIP 5MT-0.25; TIP 5WT-0.25 |
