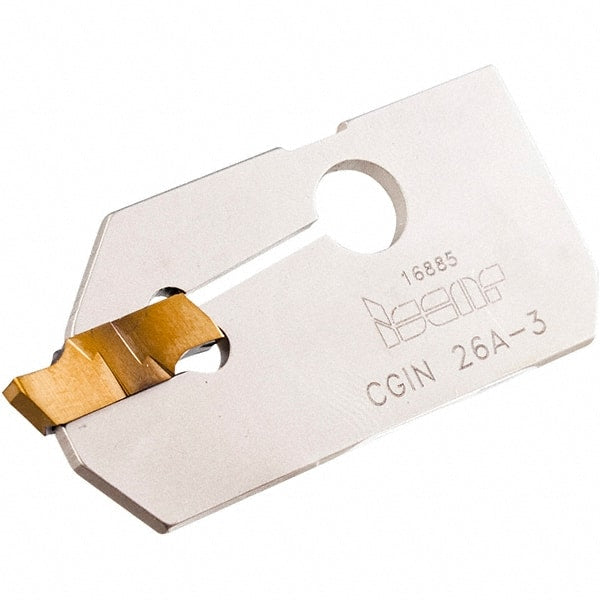

Iscar - 4.4 to 6.4mm Groove Width, 19.5mm Max Depth of Cut, Neutral Cut, CGIN Indexable Grooving Blade - GIFI, GIFI-E, GIFI-E (Full Radius), GINI-E, GIPI, GIPI (Full Radius), GIPI-E, TIPI-MT Insert Style, Series Cut Grip
Item #: 60782422
Brand: Iscar
Model #: 2800589
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Neutral |
| Minimum Groove Width (mm) | 4.40 |
| Minimum Groove Width (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (mm) | 19.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.7677 |
| Blade Style | CGIN |
| Series | Cut Grip |
| Blade Height (mm) | 26.00 |
| Blade Height (Decimal Inch) | 1.0236 |
| Blade Width (mm) | 4.00 |
| Blade Width (Decimal Inch) | 0.1575 |
| Maximum Groove Width (mm) | 6.40 |
| Maximum Groove Width (Decimal Inch) | 0.2520 |
| Overall Length (mm) | 49.50 |
| Overall Length (Decimal Inch) | 1.9488 |
| Insert Style | GIFI; GIFI-E; GIFI-E (Full Radius); GINI-E; GIPI; GIPI (Full Radius); GIPI-E; TIPI-MT |
| Complete Insert Compatibility | GIFI 5.00E-2.50; GINI 5.00E-0.50; GIPI 4.78-2.39; GIPI 5.00E-0.50; GIPI 6.35-3.18; GIPI 6.35E-0.55; TIPI 5.4MT-0.20 |
