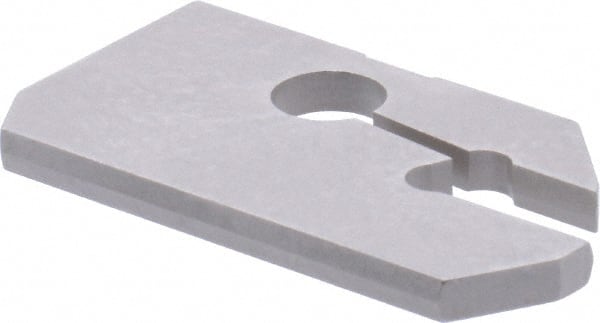

Iscar - 3.6 to 4.5mm Groove Width, 15mm Max Depth of Cut, Neutral Cut, CGIN Indexable Grooving Blade - GIFI-E, GIMIY, GINI-E, GIPI, GIPI (Full Radius), GIPI-E, GIPI-E (Full Radius) Insert Style, Series Cut Grip
Item #: 60782463
Brand: Iscar
Model #: 2800586
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Neutral |
| Minimum Groove Width (mm) | 3.60 |
| Minimum Groove Width (Decimal Inch) | 0.1417 |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Blade Style | CGIN |
| Series | Cut Grip |
| Blade Height (mm) | 26.00 |
| Blade Height (Decimal Inch) | 1.0236 |
| Blade Width (mm) | 3.20 |
| Blade Width (Decimal Inch) | 0.1260 |
| Maximum Groove Width (mm) | 4.50 |
| Maximum Groove Width (Decimal Inch) | 0.1772 |
| Overall Length (mm) | 45.00 |
| Overall Length (Decimal Inch) | 1.7717 |
| Insert Style | GIFI-E; GIMIY; GINI-E; GIPI; GIPI (Full Radius); GIPI-E; GIPI-E (Full Radius) |
| Complete Insert Compatibility | GIFI 4.00E-2.00; GIMIY 404; GINI 4.00E-0.40; GIPI 3.96-1.98; GIPI 4.00E-0.40 |
