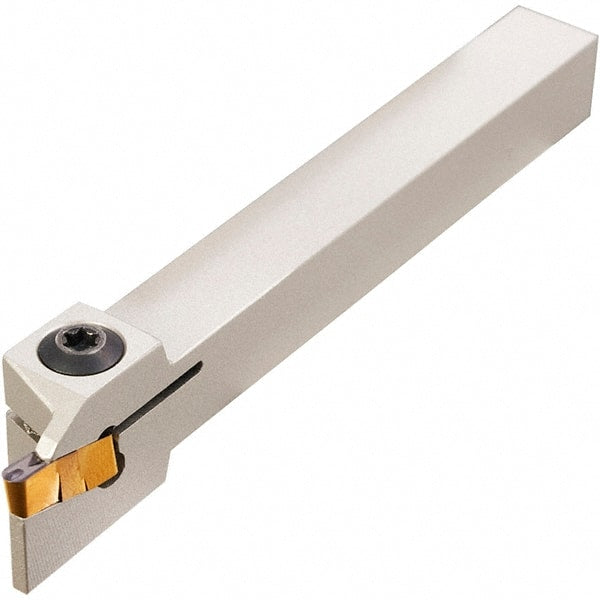

Iscar - GHD, External, Left Hand, 9mm Max Depth of Cut, 2.8 to 4mm Groove Width, Indexable Grooving Tool Holder - GI.. Insert Compatibility, 16mm Shank Height, 16mm Shank Width, 78mm OAL
Item #: 60783560
Brand: Iscar
Model #: 2800083
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3543 |
| Maximum Depth of Cut (mm) | 9.00 |
| Minimum Groove Width (Decimal Inch) | 0.1102 |
| Minimum Groove Width (mm) | 2.80 |
| Maximum Groove Width (mm) | 4.00 |
| Maximum Groove Width (Decimal Inch) | 0.1575 |
| Overall Length (mm) | 78.00 |
| Overall Length (Decimal Inch) | 3.0709 |
| Toolholder Style | GHD |
| Insert Compatibility | GI.. |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off; Profiling; Threading; Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 15.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5906 |
| Complete Insert Compatibility | GIF 3.48-0.20; GIF 3.56-0.20; GIF 3.74-0.20; GIF 3.98-0.20; GIF 4.00E-0.80; GIF 4.00E-0.60; GIF 4.00E-0.40; GIM 3; GIM 3.2; GIM 3C; GIM 3J; GIM 4; GIM 4C; GIM 4J |
