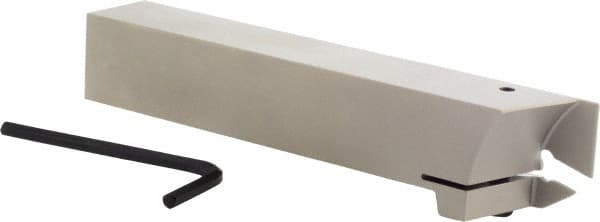

Iscar - External Thread, 0.67" Max Depth of Cut, 0.016" Min Groove Width, 6" OAL, Left Hand Indexable Grooving Cutoff Toolholder - 1" Shank Height x 1" Shank Width, GI.. Insert Style, GHG Toolholder Style, Series Cut Grip
Item #: 60785441
Brand: Iscar
Model #: 2800607
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6700 |
| Minimum Groove Width (Decimal Inch) | 0.0160 |
| Maximum Groove Width (Decimal Inch) | 0.0940 |
| Overall Length (Decimal Inch) | 6.0000 |
| Series | Cut Grip |
| Toolholder Style | GHG |
| Insert Compatibility | GI.. |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9700 |
| Complete Insert Compatibility | GIG 1.04-0.00; GIG 1.20-0.00; GIG 1.25-0.10; GIG 1.40-0.00; GIG 1.45-0.10; GIM 2.2J; GIM 2.4; GIP 2.22-0.15; GIP 2.39-0.15; GIPM 2.35-A46L; GIPM 2.35-A46R |
