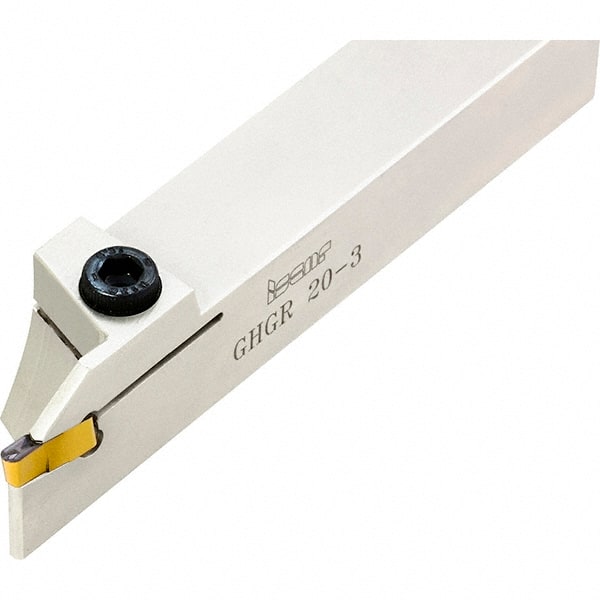

Iscar - External Thread, 0.79" Max Depth of Cut, 0.15" Min Groove Width, 6" OAL, Left Hand Indexable Grooving Cutoff Toolholder - 1" Shank Height x 1" Shank Width, GI.. Insert Style, GHG Toolholder Style, Series Cut Grip
Item #: 60785482
Brand: Iscar
Model #: 2800243
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7900 |
| Minimum Groove Width (Decimal Inch) | 0.1500 |
| Maximum Groove Width (Decimal Inch) | 0.1900 |
| Overall Length (Decimal Inch) | 6.0000 |
| Series | Cut Grip |
| Toolholder Style | GHG |
| Insert Compatibility | GI.. |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9400 |
| Complete Insert Compatibility | GIF 3.98-0.20; GIF 4.00E-0.80; GIF 4.00E-0.60; GIF 4.00E-0.40; GIF 4.23-0.10; GIF 4.45-0.15; GIF 4.78-0.55; GIM 4; GIM 4C; GIM 4J |
