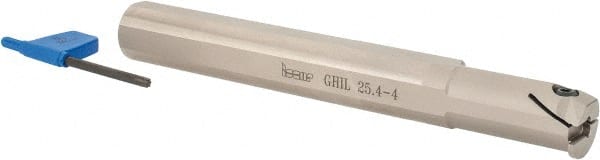

Iscar - GHI, Internal, Left Hand, 0.197" Max Depth of Cut, 0.098 to 0.157" Groove Width, Indexable Grooving Tool Holder - GIFI.., GIMY.., GINI.., GIPI.., TIPI.. Insert Compatibility, 1" Shank Width, 8" OAL
Item #: 60786241
Brand: Iscar
Model #: 2800300
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Minimum Groove Width (Decimal Inch) | 0.0980 |
| Maximum Groove Width (Decimal Inch) | 0.1570 |
| Overall Length (Decimal Inch) | 8.0000 |
| Toolholder Style | GHI |
| Insert Compatibility | GIFI..; GIMY..; GINI..; GIPI..; TIPI.. |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Minimum Hole Diameter (Decimal Inch) | 0.9840 |
| Center to Cutting Edge (Decimal Inch) | 0.6900 |
| Head Length (Decimal Inch) | 2.0000 |
| Manufacturers Catalog Number | GHIL 25.4-4 |
