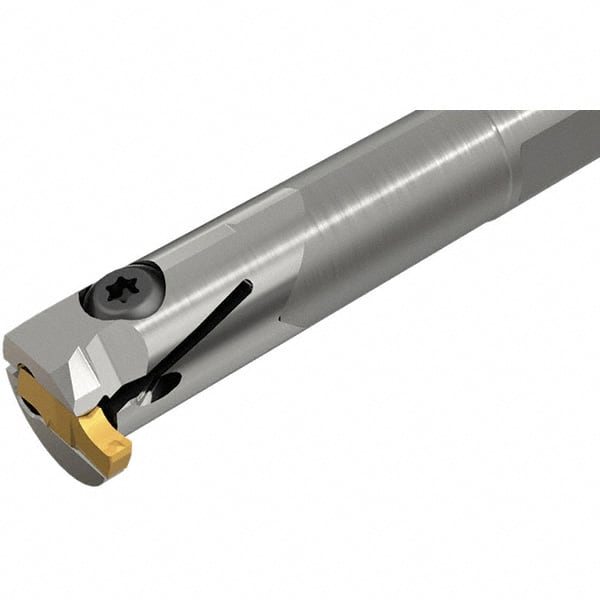

Iscar - 20mm Min Bore Diam, 200mm OAL, 20mm Shank Diam, GHI-SC Indexable Boring Bar - 60mm Max Bore Depth, GI.., TIPI 3.4MT Insert
Item #: 60786647
Brand: Iscar
Model #: 2800597
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | GHI-SC |
| Series | Cut Grip |
| Minimum Bore Diameter (mm) | 20.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.7874 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 60.00 |
| Maximum Bore Depth (Decimal Inch) | 2.3622 |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Compatibility | GI..; TIPI 3.4MT |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Profiling; Threading |
| Center to Cutting Edge (mm) | 14.50 |
| Center to Cutting Edge (Decimal Inch) | 0.5709 |
| Coolant Hole Diameter (mm) | 8.50 |
| Coolant Hole Diameter (Decimal Inch) | 0.3346 |
| Complete Insert Compatibility | GIMIY 304; GIPI 2.00-0.10LX; GIPI 2.00-0.10RX; GIPI 2.22-0.15; GIPI 2.22-0.10; GIPI 2.30-0.20; GIPI 2.39-0.15; GIPI 2.39-0.2LX; GIPI 2.39-1.19LX; GIPI 2.50-0.20; GIPI 3.00E-0.40; TIPI 3.4MT-0.10 |
| Toolholder Material | Carbide |
