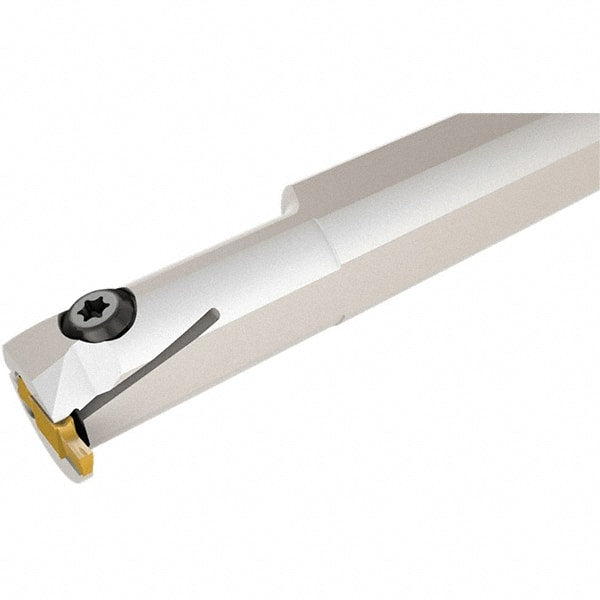

Iscar - 26mm Min Bore Diam, 160mm OAL, 25mm Shank Diam, GHI Indexable Boring Bar - 25mm Max Bore Depth, GI.. Insert
Item #: 60786720
Brand: Iscar
Model #: 2800351
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | GHI |
| Series | Cut Grip |
| Minimum Bore Diameter (mm) | 26.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.0236 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 25.00 |
| Maximum Bore Depth (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 160.00 |
| Overall Length (Decimal Inch) | 6.2992 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Compatibility | GI.. |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Profiling; Threading |
| Center to Cutting Edge (mm) | 18.50 |
| Center to Cutting Edge (Decimal Inch) | 0.7283 |
| Complete Insert Compatibility | GIFI 4.00E-0.40; GIFI 4.78-0.55; GIFI 5.00E-0.50; GIFI 5.28-0.20; GIMIY 404; GIPI 3.30-0.10; GIPI 3.96-0.20; GIPI 4.00E-0.40; GIPI 4.23-0.10; GIPI 4.78-0.55; GIPI 5.00E-0.50 |
