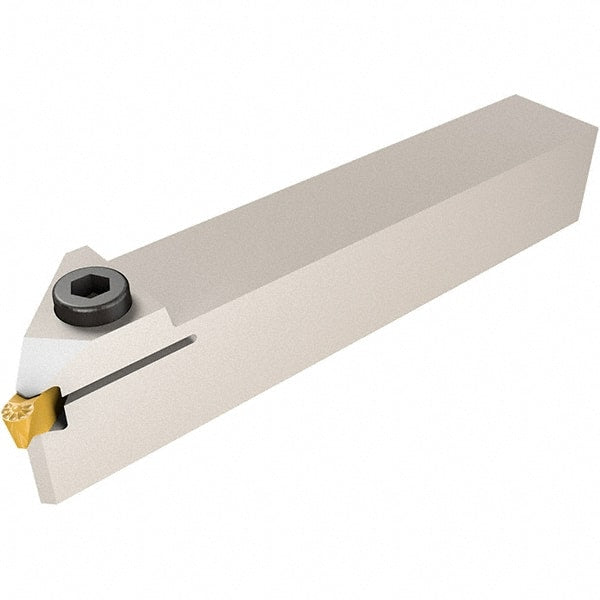

Iscar - GHMU, External, Right Hand, 5/32" Max Groove Width, Indexable Grooving Tool Holder - GI.. Insert Compatibility, 1/2" Shank Height, 1/2" Shank Width, 4-1/2" OAL
Item #: 60788049
Brand: Iscar
Model #: 2861206
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Groove Width (Decimal Inch) | 0.1560 |
| Overall Length (Decimal Inch) | 4.5000 |
| Toolholder Style | GHMU |
| Insert Compatibility | GI.. |
| Shank Height (Decimal Inch) | 0.5000 |
| Shank Width/Diameter (Decimal Inch) | 0.5000 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Undercutting |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6300 |
| Complete Insert Compatibility | GIMY 315-UN; GIP 3.00-1.50UN; GIP 3.18-0.20-22D; GIP 3.18-0.20-22G |
