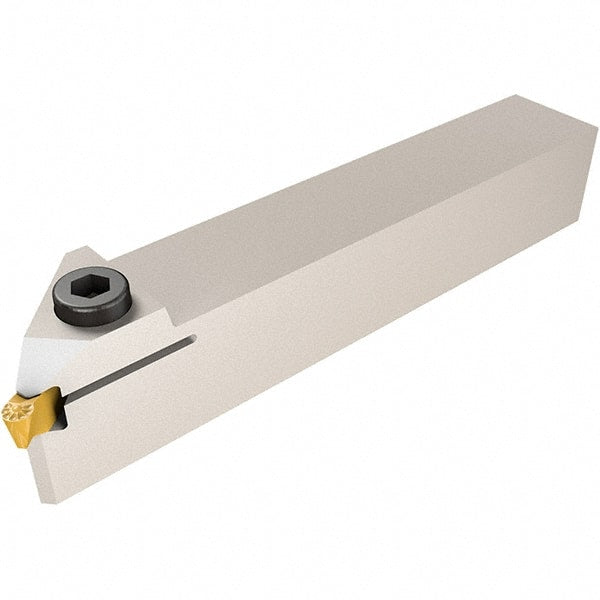

Iscar - GHS, External, Left Hand, 2.2 to 3.15mm Groove Width, Indexable Grooving Tool Holder - GI.. Insert Compatibility, 10mm Shank Height, 10mm Shank Width, 120mm OAL
Item #: 60788122
Brand: Iscar
Model #: 2800490
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Minimum Groove Width (Decimal Inch) | 0.0866 |
| Minimum Groove Width (mm) | 2.20 |
| Maximum Groove Width (mm) | 3.15 |
| Maximum Groove Width (Decimal Inch) | 0.1240 |
| Overall Length (mm) | 120.00 |
| Overall Length (Decimal Inch) | 4.7244 |
| Toolholder Style | GHS |
| Insert Compatibility | GI.. |
| Shank Height (mm) | 10.00 |
| Shank Height (Decimal Inch) | 0.3937 |
| Shank Width/Diameter (mm) | 10.00 |
| Shank Width/Diameter (Decimal Inch) | 0.3937 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off; Profiling; Threading; Turning |
| Insert Holding Method | Clamp |
| Maximum Workpiece Diameter (Decimal Inch) | 0.7900 |
| Back of Bar to Cutting Edge (mm) | 9.10 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3583 |
| Complete Insert Compatibility | GIG 2.22-0.15; GIG 2.30-0.20; GIM 2.2J; GIM 3J; GIMY 304; GIP 2.22-0.15; GIP 2.39-0.15; GIP 2.47-0.20; GIP 2.70-0.20; GIP 2.70-0.10; GIP 3.00E-0.80; GIP 3.00E-0.40; GIP 3.00E-0.20; GIP 3.00E-0.00 |
