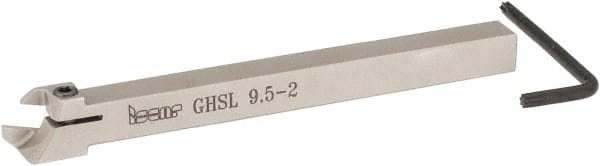

Iscar - GHS, External, Left Hand, 0.395" Max Depth of Cut, 0.087 to 1/8" Groove Width, Indexable Grooving Tool Holder - GIG, GIM, GIP, TIP Insert Compatibility, 3/8" Shank Height, 3/8" Shank Width, 4.72" OAL
Item #: 60788205
Brand: Iscar
Model #: 2800550
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3950 |
| Minimum Groove Width (Decimal Inch) | 0.0870 |
| Maximum Groove Width (Decimal Inch) | 0.1240 |
| Overall Length (Decimal Inch) | 4.7200 |
| Toolholder Style | GHS |
| Insert Compatibility | GIG; GIM; GIP; TIP |
| Shank Height (Decimal Inch) | 0.3750 |
| Shank Width/Diameter (Decimal Inch) | 0.3750 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Insert Seat Size | 2 |
| Maximum Workpiece Diameter (Decimal Inch) | 0.7900 |
| Head Length (Decimal Inch) | 0.6800 |
