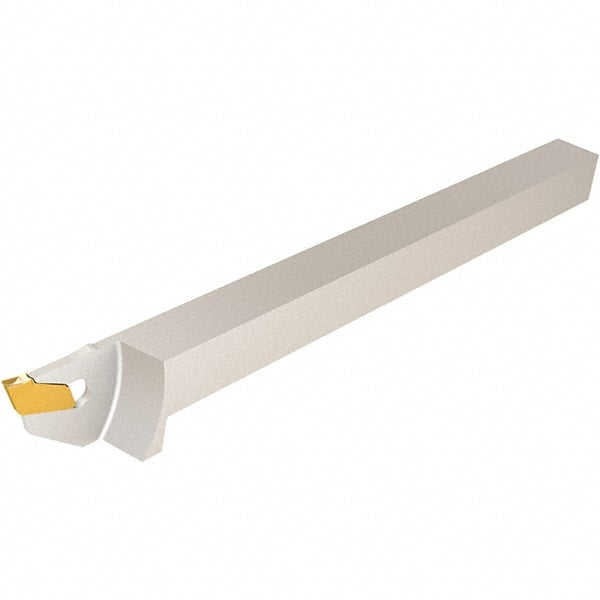

Iscar - SGAF, External, Right Hand, 1.6 to 1.6mm Groove Width, Indexable Grooving Tool Holder - GF.. 1.6 Insert Compatibility, 14mm Shank Height, 14mm Shank Width, 140mm OAL
Item #: 60815347
Brand: Iscar
Model #: 2300175
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Minimum Groove Width (Decimal Inch) | 0.0630 |
| Minimum Groove Width (mm) | 1.60 |
| Maximum Groove Width (mm) | 1.60 |
| Maximum Groove Width (Decimal Inch) | 0.0630 |
| Overall Length (mm) | 140.00 |
| Overall Length (Decimal Inch) | 5.5118 |
| Toolholder Style | SGAF |
| Insert Compatibility | GF.. 1.6 |
| Shank Height (mm) | 14.00 |
| Shank Height (Decimal Inch) | 0.5512 |
| Shank Width/Diameter (mm) | 14.00 |
| Shank Width/Diameter (Decimal Inch) | 0.5512 |
| Series | Self-Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off |
| Insert Holding Method | Self Grip |
| Maximum Workpiece Diameter (mm) | 35.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.3780 |
| Complete Insert Compatibility | GFL 1.6 - 8D; GFL 1.6 -15D; GFL 1.6J - 6D; GFL 1.6JS- 6D; GFL 1.6JS-15D; GFN 1.6; GFN 1.6A; GFN 1.6J; GFR 1.6 - 8D; GFR 1.6 -15D; GFR 1.6JS- 6D; GFR 1.6JS-15D; GFR 1.6S - 8D |
