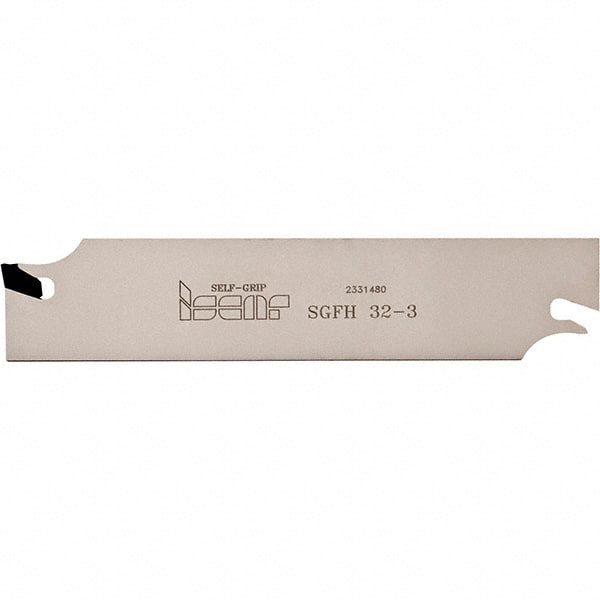

Iscar - 1.6" Groove Width, 20mm Max Depth of Cut, Neutral Cut, SGFH Indexable Grooving Blade - GFN-A, GFN-C, GFN-J, GFR/L-J Insert Style, Series Self-Grip
Item #: 60820925
Brand: Iscar
Model #: 2301072
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Neutral |
| Minimum Groove Width (mm) | 1.60 |
| Minimum Groove Width (Decimal Inch) | 0.0630 |
| Maximum Depth of Cut (mm) | 20.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Blade Style | SGFH |
| Series | Self-Grip |
| Blade Height (mm) | 26.00 |
| Blade Height (Decimal Inch) | 1.0236 |
| Blade Width (mm) | 1.20 |
| Blade Width (Decimal Inch) | 0.0472 |
| Maximum Groove Width (mm) | 1.60 |
| Maximum Groove Width (Decimal Inch) | 0.0630 |
| Overall Length (mm) | 63.00 |
| Overall Length (Decimal Inch) | 2.4803 |
| Insert Style | GFN-A; GFN-C; GFN-J; GFR/L-J |
| Complete Insert Compatibility | GFL 1.6 - 8D; GFL 1.6 -15D; GFL 1.6J - 6D; GFL 1.6JS- 6D; GFL 1.6JS-15D; GFN 1.6; GFN 1.6A; GFN 1.6J; GFR 1.6 - 8D; GFR 1.6 -15D; GFR 1.6JS- 6D; GFR 1.6JS-15D; GFR 1.6S - 8D |
