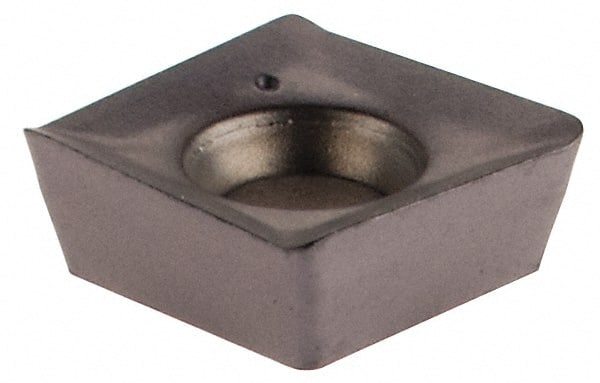

Iscar - SOMT060204 HQ Grade IC928 Carbide Milling Insert - TiAlN Finish, 0.1008" Thick, 0.2425" Inscribed Circle, 0.4mm Corner Radius
Item #: 60822210
Brand: Iscar
Model #: 5692008
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SOMT |
| Insert Size | 060204 |
| Material | Carbide |
| Material Grade | C1/C2/C5/C6 |
| Manufacturer's Grade | IC928 |
| Coating | TiAlN |
| Inscribed Circle (Decimal Inch) | 0.2425 |
| Thickness (Decimal Inch) | 0.1008 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Chipbreaker | HQ |
| ISO Number | SOMT 060204-HQ |
