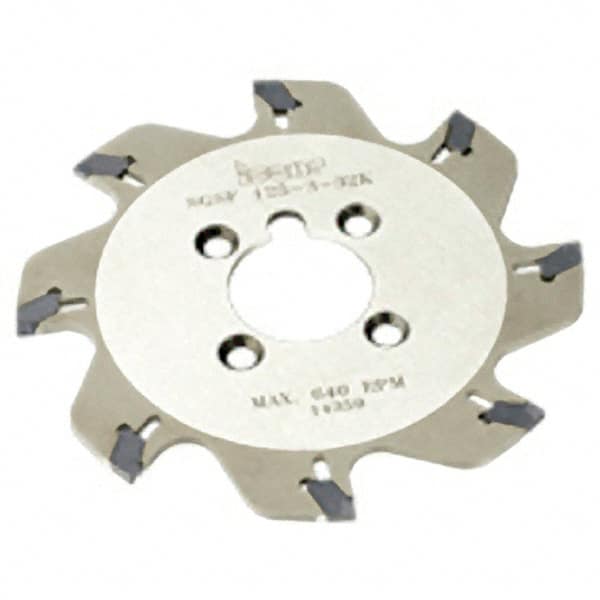

Iscar - Arbor Hole Connection, 2.0472" Depth of Cut, 160mm Cutter Diam, 1.2598" Hole Diam, 10 Tooth Indexable Slotting Cutter - SGSF Toolholder, GSF. Insert
Item #: 60823309
Brand: Iscar
Model #: 2300691
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Maximum Depth of Cut (mm) | 52.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.0472 |
| Cutter Diameter (mm) | 160.00 |
| Cutter Diameter (Decimal Inch) | 6.2992 |
| Hole Diameter (mm) | 32.00 |
| Hole Diameter (Decimal Inch) | 1.2598 |
| Number of Teeth | 10 |
| Toolholder Style | SGSF |
| Series | Self-Grip(SGSA) |
| Insert Style | GSF. |
| Staggered Tooth | No |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Self Clamping |
| Maximum RPM | 500 |
| Minimum Cutting Width (Decimal Inch) | 0.1063 |
| Maximum Cutting Width (Decimal Inch) | 0.1390 |
| Maximum Cutting Width (mm) | 3.53 |
| Hub Diameter (mm) | 55.00 |
| Hub Diameter (Decimal Inch) | 2.1654 |
