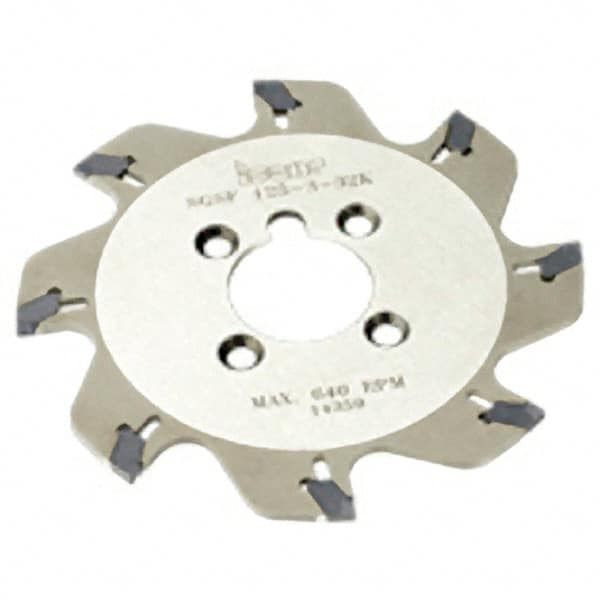

Iscar - Arbor Hole Connection, 3.34" Depth of Cut, 9.84" Cutter Diam, 1-1/2" Hole Diam, 18 Tooth Indexable Slotting Cutter - SGSF Toolholder, GSF. Insert
Item #: 60823481
Brand: Iscar
Model #: 2300700
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Maximum Depth of Cut (Decimal Inch) | 3.3400 |
| Cutter Diameter (Decimal Inch) | 9.8400 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Number of Teeth | 18 |
| Toolholder Style | SGSF |
| Series | Self-Grip(SGSA) |
| Insert Style | GSF. |
| Staggered Tooth | No |
| Number of Cutter Inserts | 18 |
| Insert Holding Method | Self Clamping |
| Maximum RPM | 320 |
| Minimum Cutting Width (Decimal Inch) | 0.1060 |
| Maximum Cutting Width (Decimal Inch) | 0.1390 |
| Hub Diameter (Decimal Inch) | 3.1500 |
