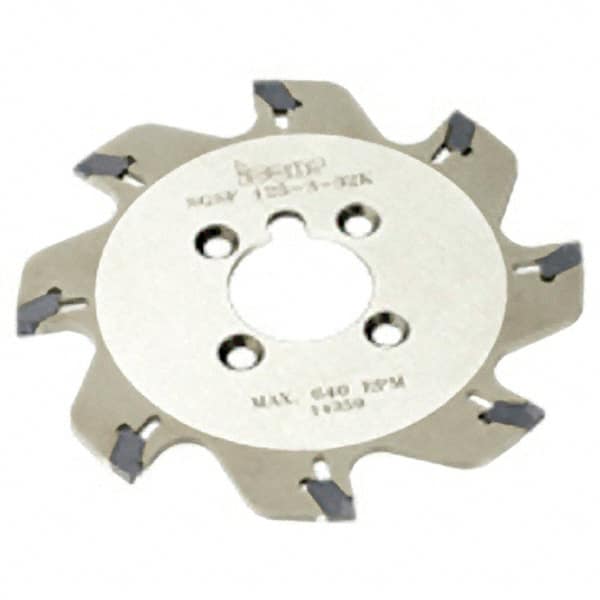

Iscar - Arbor Hole Connection, 0.78" Depth of Cut, 3.15" Cutter Diam, 1" Hole Diam, 6 Tooth Indexable Slotting Cutter - SGSF Toolholder, GSFN Insert
Item #: 60823606
Brand: Iscar
Model #: 2300971
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Maximum Depth of Cut (Decimal Inch) | 0.7800 |
| Cutter Diameter (Decimal Inch) | 3.1500 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Number of Teeth | 6 |
| Toolholder Style | SGSF |
| Series | Self-Grip(SGSA) |
| Insert Style | GSFN |
| Staggered Tooth | No |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Self Clamping |
| Maximum RPM | 1000 |
| Minimum Cutting Width (Decimal Inch) | 0.0940 |
| Maximum Cutting Width (Decimal Inch) | 0.0960 |
| Hub Diameter (Decimal Inch) | 1.5400 |
