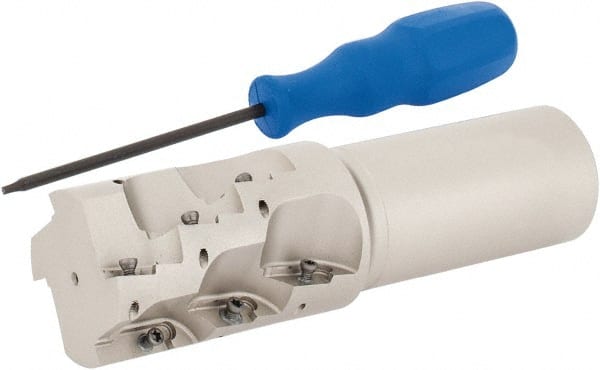

Iscar - 1-1/2" Cut Diam, 2.2" Max Depth of Cut, 1-1/4" Shank Diam, 5" OAL, Indexable Square Shoulder End Mill - AP.T 1003.. Inserts, Weldon Shank, 90° Lead Angle, Series Helimill
Item #: 60840162
Brand: Iscar
Model #: 3100403
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Diameter (Inch) | 1-1/2 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (Decimal Inch) | 5.0000 |
| Lead Angle | 90 |
| Series | Helimill |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 2.2000 |
| Number of Cutter Inserts | 18 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | APK-FE |
| Number of Flutes | 3 |
| Head Length (Decimal Inch) | 2.7200 |
| Weldon Flat | Yes |
| Insert Compatibility | AP.T 1003.. |
