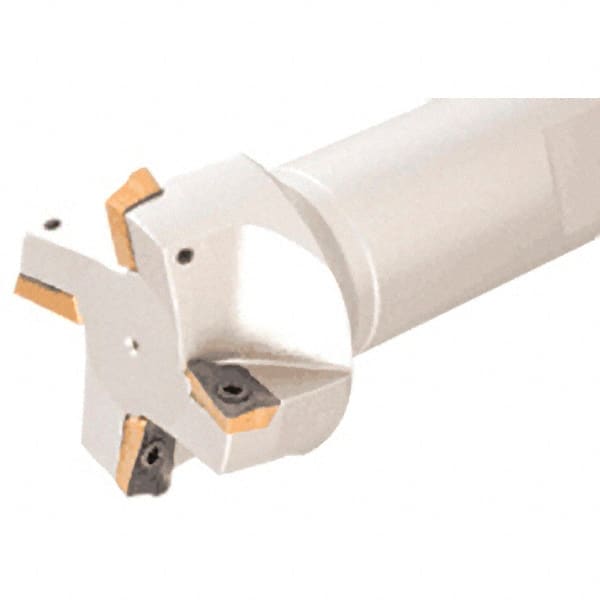

Iscar - 75° Lead Angle, 1-1/2" Cut Diam, 0.15" Max Depth of Cut, Indexable Chamfer and Angle End Mill - 4 Inserts, AP.., HM90 AP.T Insert Style, 4" Overall Length, Straight Shank
Item #: 60840402
Brand: Iscar
Model #: 3110345
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Cutting Diameter (Decimal Inch) | 1.5000 |
| Shank Type | Weldon |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 75 |
| Overall Length (Decimal Inch) | 4.0000 |
| Insert Style | AP..; HM90 AP.T |
| Series | Helimill |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Number of Cutter Inserts | 4 |
| Toolholder Style | E75A |
| Head Length (Decimal Inch) | 1.1800 |
| Weldon Flat | Yes |
