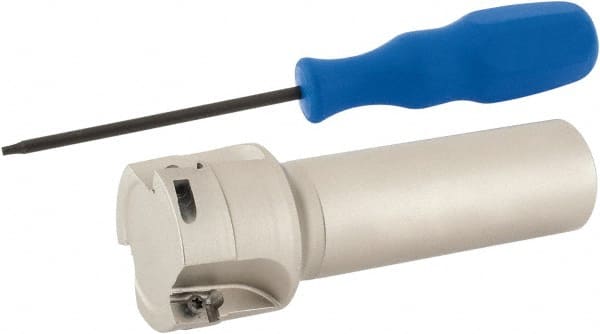

Iscar - 1-1/2" Cut Diam, 0.394" Max Depth of Cut, 1" Shank Diam, 4" OAL, Indexable Square Shoulder End Mill - Weldon Shank, 90° Lead Angle, Series Heli2000
Item #: 60841327
Brand: Iscar
Model #: 3101917
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Diameter (Inch) | 1-1/2 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (Decimal Inch) | 4.0000 |
| Lead Angle | 90 |
| Series | Heli2000 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Head Length (Decimal Inch) | 1.2000 |
| Weldon Flat | Yes |
