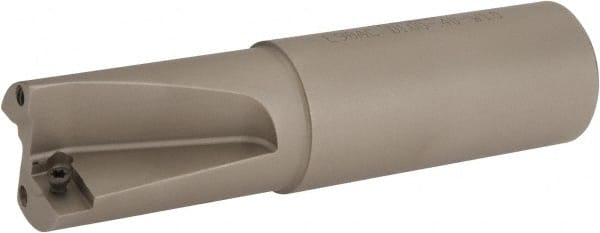

Iscar - 1" Cut Diam, 0.4" Max Depth of Cut, 1" Shank Diam, 4.02" OAL, Indexable Square Shoulder End Mill - AP.T 1003.. Inserts, Weldon Shank, 90° Lead Angle, Series Helimill
Item #: 60841582
Brand: Iscar
Model #: 3100401
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (Decimal Inch) | 4.0200 |
| Lead Angle | 90 |
| Series | Helimill |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.4000 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | E90AC |
| Number of Flutes | 1 |
| Head Length (Decimal Inch) | 1.5700 |
| Weldon Flat | Yes |
| Insert Compatibility | AP.T 1003.. |
