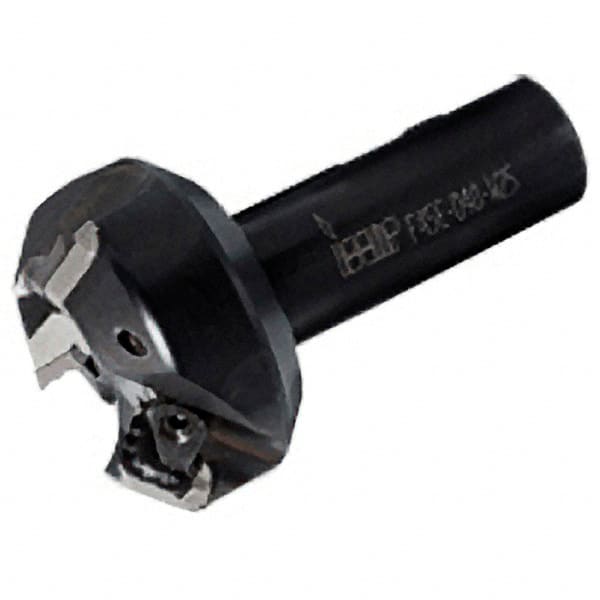

Iscar - 45° Lead Angle, 67.2mm Max Cut Diam, 50mm Min Cut Diam, 6.5mm Max Depth of Cut, Indexable Chamfer and Angle End Mill - 4 Inserts, SEK, SEKR Insert Style, 140mm Overall Length, Taper Shank
Item #: 60842481
Brand: Iscar
Model #: 3100043
Exact Tooling IR#: 04
Features and Benefits
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 1.9685 |
| Minimum Cutting Diameter (mm) | 50.00 |
| Maximum Cutting Diameter (mm) | 67.20 |
| Maximum Cutting Diameter (Decimal Inch) | 2.6457 |
| Shank Type | Taper Shank |
| Shank Taper Size | R8 |
| Lead Angle | 45 |
| Overall Length (mm) | 140.00 |
| Overall Length (Decimal Inch) | 5.5118 |
| Insert Style | SEK; SEKR |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.2559 |
| Maximum Depth of Cut (mm) | 6.50 |
| Number of Cutter Inserts | 4 |
| Toolholder Style | F45E |
| Number of Flutes | 4 |
| Head Length (mm) | 38.10 |
| Head Length (Decimal Inch) | 1.5000 |
| Shank Length (Decimal Inch) | 4.2500 |
